thermally conductive tape
(Tct Series)

INTRODUCTION

TCT Series is a non-substrate thermal conductive double-sided adhesive is coated and pressed with acrylic acid adhesive, with a white color and a common thickness specification of 0.2-0.5mm. It has excellent bonding effect, can prevent detachment and excellent waterproof performance, temperature resistance, dimensional stability, thermal stability, chemical stability, and good initial and holding adhesion. This can be applied to a wider temperature range and harsh environments with long term temperature resistance of 80-120°C and short-term temperature resistance up to 180-205°C. It does not contain silicone and can be used as a substitute for thermal conductive silicone grease.

KEY FEATURES

  • High thermal conductivity, low thermal resistance
  • Good surface wettability, strong viscosity, oil-free, corrosion resistance
  • Long term reliability
  • Various thickness selection and can be used in wide application range

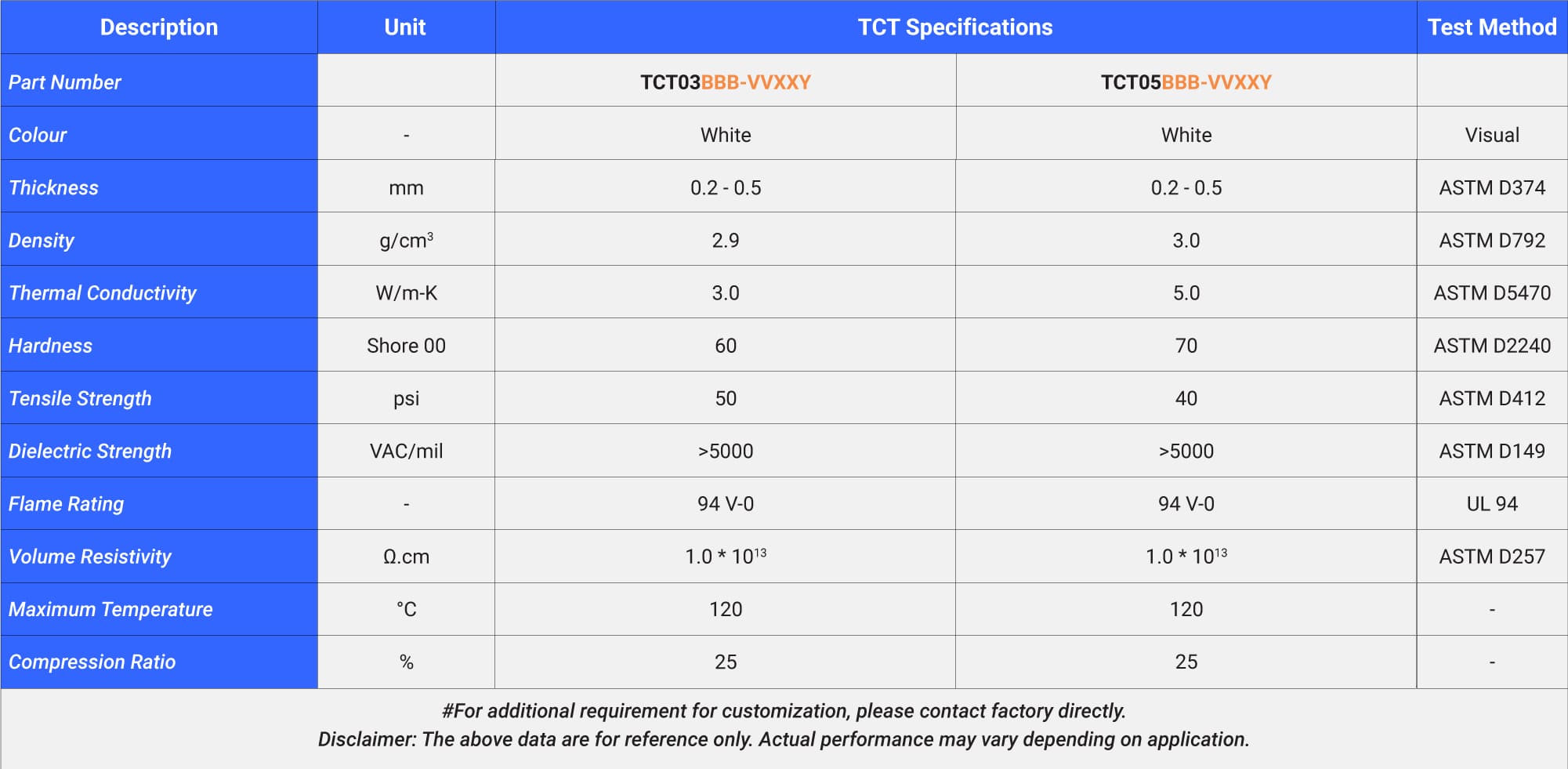

SPECIFICATIONS - TCT SERIES
